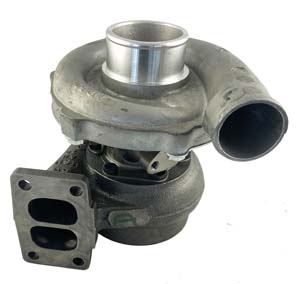

452077-5005S
TO4E35
| Specification | Value |
|---|---|
| Model Turbo | TO4E35 |
| Application | SABRE |
| C.H.R.A. | 447450-5106S |
| A/R | 0.70 |
| Service Kit | 468265-0000 |
| Gaskets KIT | 215111 |
| Studs KIT | 216020 |
| OEM P/N | 33658 |
| Turbine wheel | 446905-0004 |
| Compressor wheel | 442293-0002 |
| Bearing housing | 430027-0025 |
| Back plate | 408045-0031 |
| Heat shield | 409299-0001 |
| Insert | N/D |
| Thrust Collar | 444506-0001 |
| Comp. housing | 443219-0005 |
| Clamp/V-band | 443136-0001 |
| Bolt | 400975-0203 |
| Turbine housing | 441458-0065 |
| Clamp/V-band | 406908-0001 |
| Bolt turbine side | 400450-0001 |
| Turbine wheel | 446905-0004 |
